CISCO

Part #: WAP561-A-K9

Item Code: NTCI000956

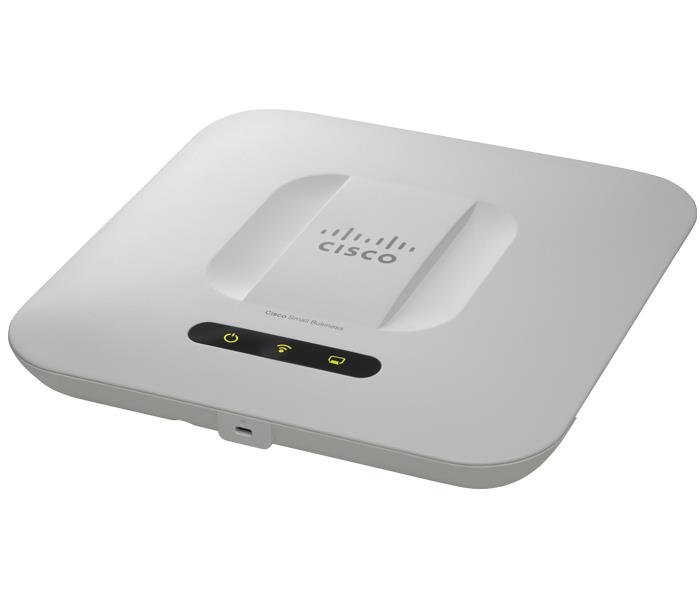

Cisco WAP561-A-K9 up to 450 Mbps Wireless Access Point - PoE Ports

Name: Cisco WAP561-A-K9 up to 450 Mbps Wireless Access Point - PoE Ports
Brand: CISCO
SKU: NTCI000956
Price: 419.99 CAD
Availability: SoldOut

CISCO

Part #: WAP561-A-K9

Item Code: NTCI000956

Cisco WAP561-A-K9 up to 450 Mbps Wireless Access Point - PoE Ports

15-day Low Price Guarantee

$419.99

Qty:

Tech Care Replace Protection See Benefits

Tech Care Replace Protection

See Benefits

2 Year

$63.00
3 Year

$71.40

Availability

CUSTOM ORDER

AVAILABLE TO ORDER

Returns are only accepted for defective items; all other sales are final.
Delivery times may vary. You will be notified once your order is ready to ship.
Custom order products cannot be canceled once the order is placed.

Main Features

Create a reliable wireless business network with this wireless access point that features a high-speed data transfer rate
With IEEE 802.11n network technology and data transfer rate of up to 54 Mbit/s, enjoy superior HD media playback and lag-free gaming
Gigabit Ethernet port for ultra-fast wired network speeds

Defective Exchange Period

30 Days

Defective Exchange Period

30 Days

Brand	CISCO
802.11d	No
802.1Xsupplicant	Yes
Access control	Yes, management access control list (ACL) plus MAC ACL
Access point	Limited lifetime
Active WLAN clients	Same as number of users. 32 max connected users, 20 active users recommended
Antenna gain in dBi	5 dBi each antenna
Auto channel selection	Yes
Buttons	Power (on/off) push button; Reset button
Cabling type	Category 5e or better
Certifications	FCC class B, CE, IC, Wi-Fi
Dynamic Host Configuration Protocol (DHCP)	DHCP client
Event logging	Local, remote syslog, email alerts
External antennas	None
Fast roaming	802.11i pre-authentication
Frequency	Dual concurrent radios (2.4 and 5 GHz)
HTTP redirect	Yes
Internal antennas	10 internal dipole antennas
IPv6	Yes, IPv6 Host support: IPv6 RADIUS, syslog, Network Time Protocol (NTP), etc.
IPv6 host	Yes
Layer 2	802.1Q-based VLANS, 16 active VLANS plus 1 management VLAN
LED	Power, Wireless, Ethernet
LEDs	Power, WLAN, LAN
Load balancing	Yes
Lock slot	Slot for Kensington lock
Management protocols	Web browser, SNMP v3, Bonjour
Multiple mounting options	Mounting bracket included for easy ceiling or wall mounting
Multiple SSIDs	16 x 2
Network diagnostics	Logging and packet capture
Network protocols	IEEE 802.11n, 802.11g, 802.11b, 802.3, 802.3u, 802.1X (security authentication), 802.1Q (VLAN), 802.11i (WPA2 security), 802.11e (wireless QoS), IPv4 (RFC 791), IPv6 (RFC 2460), RADIUS, syslog, HTTP/HTTPS, Simple Network Management Protocol (SNMP)
Number of VLANs	1 management VLAN plus 16 VLANs for SSID
Operating channels	802.11b, 2412, 2437, 2462, 802.11g, 2412, 2437, 2462, 802.11n 20 MHz (2.4 GHz band), 2412, 2437, 2462, 802.11n 40 MHz (2.4 GHz band), 2422, 2437, 2452, 802.11a, 5180, 5320, 5500, 5700, 802.11n 20 MHz (5 GHz band), 5180, 5320, 5500, 5700, 5825, 802.11n 40 MHz (5 GHz band), 5190, 5510, 5795
Operating humidity	10% to 85% noncondensing
Operating System	Linux
Operating temperature	0° to 40°C (32° to 104°F)
Package Contents	Cisco WAP561 Wireless-N Access Point, Ceiling/wall mounting kit, User guide on CD-ROM, Quick-start guide, Ethernet network cable
Physical dimensions (W x D x H)	9.05 x 9.05 x .98 in. (230 x 230 x 25 mm)
Physical security lock	Kensington lock slot
Ports	LAN Gigabit Ethernet auto sensing
Power	IEEE 802.3af Ethernet switch, Cisco SB-PWR-INJ-xx, POE power:Peak power: 1.712W
Quality of service (QoS)	Wi-Fi Multimedia, Traffic Specification (WMM TSPEC)
Radio and modulation type	Dual radio, orthogonal frequency division multiplexing (OFDM)
Receiver sensitivity	2.4 GHz 802.11b/g.1 Mbps: .91 dBm11 Mbps: .85 dBm.6 Mbps: .86 dBm54 Mbps: .69 dBm 802.11n/20 MHz.MCS0: .86 dBmMCS7: .70 dBm.MCS8: .85 dBmMCS15: .68 dBm 802.11n/40 MHz.MCS0: .84 dBmMCS7: .66 dBm.MCS8: .83 dBmMCS15: .65 dB5 GHz 802.11a.6 Mbps: .82 dBm54 Mbps: .67 dBm 802.11n/20 MHz.MCS0: .83 dBmMCS7: .68 dBm.MCS8: .82 dBmMCS15: .66 dBm 802.11n/40 MHz.MCS0: .82 dBmMCS7: .64 dBm.MCS8: .81 dBmMCS15: .62 dBm
Recommended user support	Up to 64 connective users, 30 active users per radio
Remote management	Yes
Roaming	Yes
Rogue access point detection	Yes
Secure management	HTTPS
Spanning tree	Yes
SSID broadcast	Yes
SSID to VLAN mapping	Yes
Standards	IEEE 802.11n, 802.11g, 802.11b, 802.3, 802.3u, 802.1X (security authentication), 802.1Q (VLAN), 802.11i (WPA2 security), 802.11e (wireless QoS), IPv4 (RFC 791), IPv6 (RFC 2460)
Storage humidity	5% to 90% noncondensing
Storage temperature	-20° to 70°C (-4° to 158°F)
Switch	Power button (on/off)
Transmitted output power	802.11b@11Mbps: 17dBm, 802.11g@54Mbps: 13dBm, 802.11n@HT20HT40, MCS15: 13dBm
VLAN support	Yes
Web firmware upgrade	Firmware upgradable through web browser, imported/exported configuration file
Web user interface	Built-in web user interface for easy browser-based configuration (HTTP/HTTPS)
WEP/WPA/WPA2	Yes, including Enterprise authentication
Wi-Fi Multimedia (WMM)	Yes, with unscheduled automatic power save
Wi-Fi Protected Setup (WPS)	Yes (soft WPS, no hardware push button)
Wireless distribution system (WDS)	Yes
Wireless isolation	Wireless isolation between clients
Wireless throughput	Up to 450 Mbps data rate (real-world throughput will vary)
Wireless VLAN map	Yes
WLAN	802.11b/g/n, 3x3 multiple-input multiple-output (MIMO) with 3 spatial streams, 20 and 40 MHz channels, PHY data rate up to 450 Mbps, 802.11 dynamic frequency selection (DSF), EU version only
WLAN security	Yes

Brand	CISCO
802.11d	No
802.1Xsupplicant	Yes
Access control	Yes, management access control list (ACL) plus MAC ACL
Access point	Limited lifetime
Active WLAN clients	Same as number of users. 32 max connected users, 20 active users recommended
Antenna gain in dBi	5 dBi each antenna
Auto channel selection	Yes
Buttons	Power (on/off) push button; Reset button
Cabling type	Category 5e or better
Certifications	FCC class B, CE, IC, Wi-Fi
Dynamic Host Configuration Protocol (DHCP)	DHCP client
Event logging	Local, remote syslog, email alerts
External antennas	None
Fast roaming	802.11i pre-authentication
Frequency	Dual concurrent radios (2.4 and 5 GHz)
HTTP redirect	Yes
Internal antennas	10 internal dipole antennas
IPv6	Yes, IPv6 Host support: IPv6 RADIUS, syslog, Network Time Protocol (NTP), etc.
IPv6 host	Yes
Layer 2	802.1Q-based VLANS, 16 active VLANS plus 1 management VLAN
LED	Power, Wireless, Ethernet
LEDs	Power, WLAN, LAN
Load balancing	Yes
Lock slot	Slot for Kensington lock
Management protocols	Web browser, SNMP v3, Bonjour
Multiple mounting options	Mounting bracket included for easy ceiling or wall mounting
Multiple SSIDs	16 x 2
Network diagnostics	Logging and packet capture
Network protocols	IEEE 802.11n, 802.11g, 802.11b, 802.3, 802.3u, 802.1X (security authentication), 802.1Q (VLAN), 802.11i (WPA2 security), 802.11e (wireless QoS), IPv4 (RFC 791), IPv6 (RFC 2460), RADIUS, syslog, HTTP/HTTPS, Simple Network Management Protocol (SNMP)
Number of VLANs	1 management VLAN plus 16 VLANs for SSID
Operating channels	802.11b, 2412, 2437, 2462, 802.11g, 2412, 2437, 2462, 802.11n 20 MHz (2.4 GHz band), 2412, 2437, 2462, 802.11n 40 MHz (2.4 GHz band), 2422, 2437, 2452, 802.11a, 5180, 5320, 5500, 5700, 802.11n 20 MHz (5 GHz band), 5180, 5320, 5500, 5700, 5825, 802.11n 40 MHz (5 GHz band), 5190, 5510, 5795
Operating humidity	10% to 85% noncondensing
Operating System	Linux
Operating temperature	0° to 40°C (32° to 104°F)
Package Contents	Cisco WAP561 Wireless-N Access Point, Ceiling/wall mounting kit, User guide on CD-ROM, Quick-start guide, Ethernet network cable
Physical dimensions (W x D x H)	9.05 x 9.05 x .98 in. (230 x 230 x 25 mm)
Physical security lock	Kensington lock slot
Ports	LAN Gigabit Ethernet auto sensing
Power	IEEE 802.3af Ethernet switch, Cisco SB-PWR-INJ-xx, POE power:Peak power: 1.712W
Quality of service (QoS)	Wi-Fi Multimedia, Traffic Specification (WMM TSPEC)
Radio and modulation type	Dual radio, orthogonal frequency division multiplexing (OFDM)
Receiver sensitivity	2.4 GHz 802.11b/g.1 Mbps: .91 dBm11 Mbps: .85 dBm.6 Mbps: .86 dBm54 Mbps: .69 dBm 802.11n/20 MHz.MCS0: .86 dBmMCS7: .70 dBm.MCS8: .85 dBmMCS15: .68 dBm 802.11n/40 MHz.MCS0: .84 dBmMCS7: .66 dBm.MCS8: .83 dBmMCS15: .65 dB5 GHz 802.11a.6 Mbps: .82 dBm54 Mbps: .67 dBm 802.11n/20 MHz.MCS0: .83 dBmMCS7: .68 dBm.MCS8: .82 dBmMCS15: .66 dBm 802.11n/40 MHz.MCS0: .82 dBmMCS7: .64 dBm.MCS8: .81 dBmMCS15: .62 dBm
Recommended user support	Up to 64 connective users, 30 active users per radio
Remote management	Yes
Roaming	Yes
Rogue access point detection	Yes
Secure management	HTTPS
Spanning tree	Yes
SSID broadcast	Yes
SSID to VLAN mapping	Yes
Standards	IEEE 802.11n, 802.11g, 802.11b, 802.3, 802.3u, 802.1X (security authentication), 802.1Q (VLAN), 802.11i (WPA2 security), 802.11e (wireless QoS), IPv4 (RFC 791), IPv6 (RFC 2460)
Storage humidity	5% to 90% noncondensing
Storage temperature	-20° to 70°C (-4° to 158°F)
Switch	Power button (on/off)
Transmitted output power	802.11b@11Mbps: 17dBm, 802.11g@54Mbps: 13dBm, 802.11n@HT20HT40, MCS15: 13dBm
VLAN support	Yes
Web firmware upgrade	Firmware upgradable through web browser, imported/exported configuration file
Web user interface	Built-in web user interface for easy browser-based configuration (HTTP/HTTPS)
WEP/WPA/WPA2	Yes, including Enterprise authentication
Wi-Fi Multimedia (WMM)	Yes, with unscheduled automatic power save
Wi-Fi Protected Setup (WPS)	Yes (soft WPS, no hardware push button)
Wireless distribution system (WDS)	Yes
Wireless isolation	Wireless isolation between clients
Wireless throughput	Up to 450 Mbps data rate (real-world throughput will vary)
Wireless VLAN map	Yes
WLAN	802.11b/g/n, 3x3 multiple-input multiple-output (MIMO) with 3 spatial streams, 20 and 40 MHz channels, PHY data rate up to 450 Mbps, 802.11 dynamic frequency selection (DSF), EU version only
WLAN security	Yes
