SHURE BLX14R/SM35 Headworn Wireless System (H9: 512 - 542 MHz)

Name: SHURE BLX14R/SM35 Headworn Wireless System (H9)
Brand: SHURE
SKU: PASHU00246
Price: 679 CAD
Availability: SoldOut

SHURE

Part #: BLX14R/SM35-H9

Item Code: PASHU00246

SHURE BLX14R/SM35 Headworn Wireless System (H9: 512 - 542 MHz)

15-day Low Price Guarantee

$679.00

Qty:

Tech Care Replace Protection See Benefits

Tech Care Replace Protection

See Benefits

2 Year

$101.85
3 Year

$115.43

Availability

CUSTOM ORDER

AVAILABLE TO ORDER

Returns are only accepted for defective items; all other sales are final.
Delivery times may vary. You will be notified once your order is ready to ship.
Custom order products cannot be canceled once the order is placed.

Marketing Information

Shure BLX® Wireless Systems combine professional-quality sound with simple setup and an intuitive interface for legendary audio performance right out of the box. Precision-built and available in a variety of configurations, it's the most accessible way to own the stage.

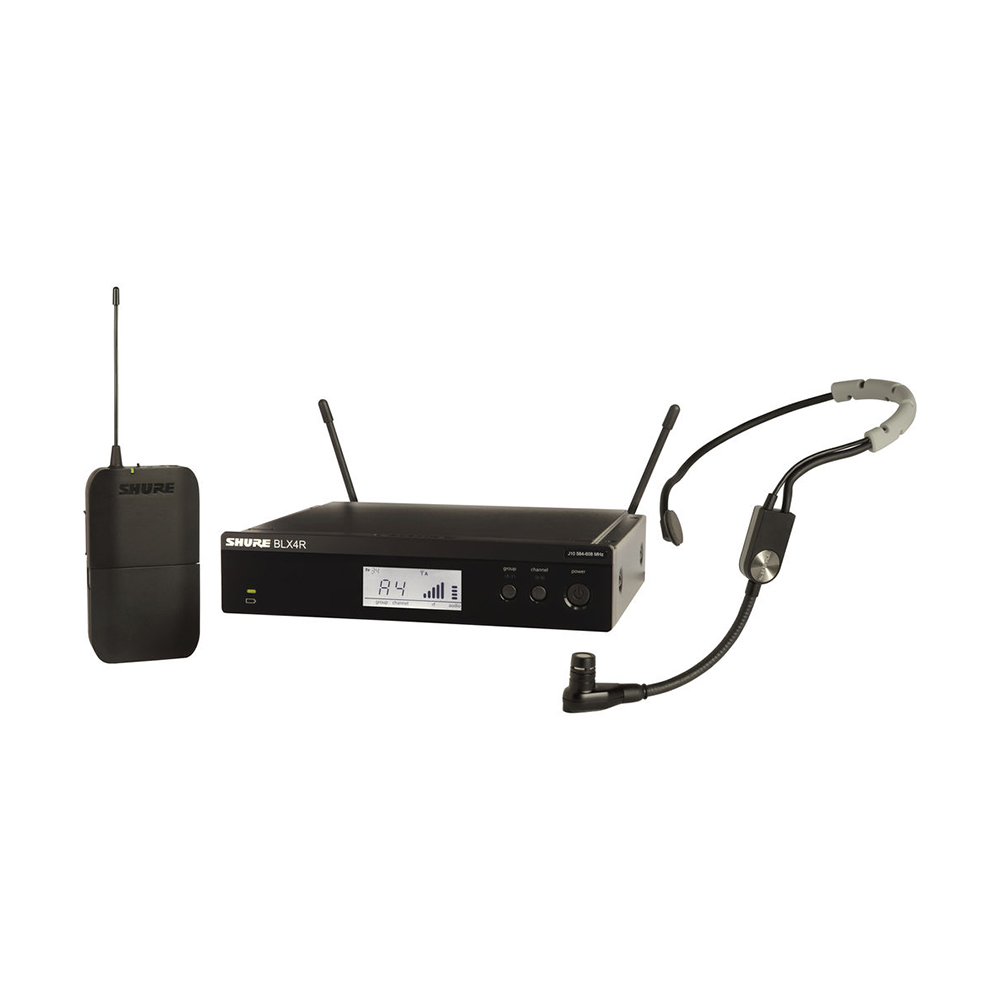

Includes BLX4R rack mount receiver, BLX1 bodypack transmitter, SM35 headset microphone, power supply, clothing clip, windscreens, rack mount hardware, and user guide.

Defective Exchange Period

30 Days

Defective Exchange Period

30 Days

Output	1x XLR Output <br/>1x 1/4" (6.35 mm) Output
Type	Electret condenser
Audio Output Level	XLR Connector: -20.5 dBV into 100 kOhms Load (Reference +/-33 kHz with 1 kHz Tone) <br/>1/4": -13 dBV into 100 kOhms Load (Reference +/-33 kHz with 1 kHz Tone)
Cable	45" (1.1 m)
Connector	TA4F
Dynamic Range	114 dB, @ 1 kHz (1,000 Ω load)
Frequency Response	40 Hz to 20 kHz
Housing	Molded ABS, Steel
Image Rejection	>50 dB, Typical
Maximum SPL	153 dB, @ 1 kHz (1,000 Ω load)
Output Impedance	XLR: 200 ohms <br/>1/4": 50 ohms
Output Noise	39 dB, typical, A-weighted
Polar Pattern	Cardioid
Polarity	Positive pressure on diaphragm produces positive voltage on pin 3 with respect to pin 1
Power Requirement	12 to 15 VDC @ 260 mA, Supplied by External Power Supply (Tip Positive)
Power Requirements	+5 V DC (nominal), 10 V maximum (DC bias)
RF Sensitivity	-105 dBm for 12 dB SINAD, Typical
Signal to Noise Ratio	55 dB @ 1 kHz

Output	1x XLR Output <br/>1x 1/4" (6.35 mm) Output
Type	Electret condenser
Audio Output Level	XLR Connector: -20.5 dBV into 100 kOhms Load (Reference +/-33 kHz with 1 kHz Tone) <br/>1/4": -13 dBV into 100 kOhms Load (Reference +/-33 kHz with 1 kHz Tone)
Cable	45" (1.1 m)
Connector	TA4F
Dynamic Range	114 dB, @ 1 kHz (1,000 Ω load)
Frequency Response	40 Hz to 20 kHz
Housing	Molded ABS, Steel
Image Rejection	>50 dB, Typical
Maximum SPL	153 dB, @ 1 kHz (1,000 Ω load)
Output Impedance	XLR: 200 ohms <br/>1/4": 50 ohms
Output Noise	39 dB, typical, A-weighted
Polar Pattern	Cardioid
Polarity	Positive pressure on diaphragm produces positive voltage on pin 3 with respect to pin 1
Power Requirement	12 to 15 VDC @ 260 mA, Supplied by External Power Supply (Tip Positive)
Power Requirements	+5 V DC (nominal), 10 V maximum (DC bias)
RF Sensitivity	-105 dBm for 12 dB SINAD, Typical
Signal to Noise Ratio	55 dB @ 1 kHz
