Part #: DS-2CD3146G2-IMS 2.8MM

Item Code: UCHIK00103

HIKVISION 4MP ACUSENSE HDMI DOME 2.8MM

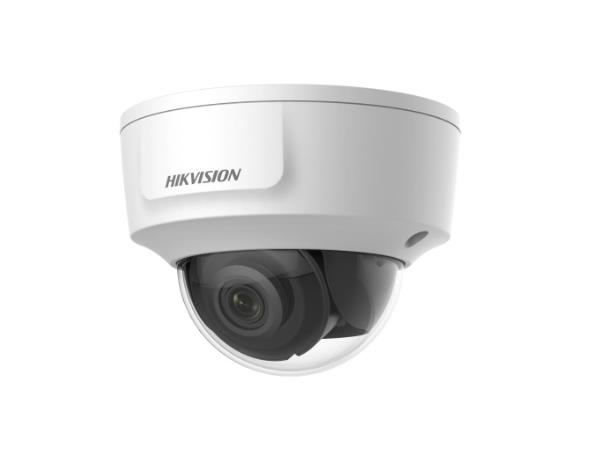

Name: HikVision IPC-B140H 2.8MM Security Camera
Brand: HikVision
SKU: UCHIK00103
Price: 324 CAD
Availability: SoldOut

HikVision

Part #: DS-2CD3146G2-IMS 2.8MM

Item Code: UCHIK00103

HIKVISION 4MP ACUSENSE HDMI DOME 2.8MM

15-day Low Price Guarantee

$324.00

Qty:

Tech Care Replace Protection See Benefits

Tech Care Replace Protection

See Benefits

2 Year

$48.60
3 Year

$55.08

Availability

CUSTOM ORDER

AVAILABLE TO ORDER

Returns are only accepted for defective items; all other sales are final.
Delivery times may vary. You will be notified once your order is ready to ship.
Custom order products cannot be canceled once the order is placed.

Defective Exchange Period

30 Days

Defective Exchange Period

30 Days

Brand	HikVision
Model	IPC-B140H 2.8MM
Image Sensor	1/3" progressive scan CMOS
Alarm Trigger	Motion detection <br> Video Tampering Alarm <br> Illegal Login
Angle Adjustment	Pan: 0° to 360° <br> tilt: 0° to 180° <br> rotation: 0° to 360°
Aperture	F2.0
API	ONVIF (PROFILE S, PROFILE G) <br> ISAPI
Client	HiLookVision Client and HiLookVision Mobile App
Communication Interface	1 RJ45 10M/100M self-adaptive Ethernet port
Consumption	12 VDC <br> 0.4 A, maximum: 5 W PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.13 A <br> maximum: 7 W
Consumption (Without HDD And PoE Off)	≤ 10 W
Day &Night	IR cut filter
Day/Night Switch	Auto <br> Scheduled <br> Day/Night
Dimension (W × D × H)	Camera: Ø70 mm × 191.3 mm (Ø2.7" × 7.5") <br> With package: 216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6")
DNR (Digital Noise Reduction)	3D DNR
Firmware Version	v.5.5.3
Focal Length	2.8 mm
Focus	No
FOV	Horizontal FOV: 114.8°, Vertical FOV: 62°, Diagonal FOV: 135.5°
General Function	Anti-flicker <br> Heartbeat <br> Mirror <br> Password Protection <br> Privacy Mask <br> Watermark <br> IP address filter
H.264 Type	Baseline Profile <br> Main Profile <br> High Profile
H.264+	Main Stream Supports
H.265 Type	Main Profile
H.265+	Main Stream Supports
Image Enhancement	BLC, 3D DNR
Image Setting	Saturation <br> Brightness <br> Contrast <br> Sharpness <br> AGC <br> White balance adjustable by client software or web browser
IR Range	Up to 98 ft (30 m)
Lens Mount	M12
Main Stream	50 Hz: 20 fps (2560 × 1440), 25 fps (2304 × 1296, 1920 × 1080, 1280 × 720) <br> 60 Hz: 20 fps (2560 × 1440), 30 fps (2304 × 1296, 1920 × 1080, 1280 × 720)
Min. Illumination	Color: 0.028 lux @ (ƒ/2.0, AGC on), B/W: 0 lux with IR
Network Storage	NAS (NFS, SMB/CIFS)
Operating Conditions	-30° to 50° C (-22° to 122° F), humidity: 95% or less (non-condensing
Protection Level	IP67
Protocols	TCP/IP <br> ICMP <br> HTTP <br> HTTPS <br> FTP <br> DHCP <br> DNS <br> DDNS <br> RTP <br> RTSP <br> RTCP <br> PPPoE <br> NTP <br> UPnP <br> SMTP <br> SNMP <br> IGMP <br> 802.1x, QoS, IPv6 UDP, Bonjour
Simultaneous Live View	Up to 6 channels
Sub-Stream	50 Hz: 25 fps (640 × 480, 640 × 360, 320 × 240) <br> 60 Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)
User/Host	Up to 32 users; 3 levels: Administrator, Operator, and User
Video Bit Rate	32 Kbps to 8 Mbps
WDR	120 dB
Web Browser	IE8+, Chrome 41.044, Firefox 30.051, Safari 8.011
Working Humidity	95% or less (non-condensing)
Working Temperature	-22° to 140° F (-30° to 60° C)

Brand	HikVision
Model	IPC-B140H 2.8MM
Image Sensor	1/3" progressive scan CMOS
Alarm Trigger	Motion detection <br> Video Tampering Alarm <br> Illegal Login
Angle Adjustment	Pan: 0° to 360° <br> tilt: 0° to 180° <br> rotation: 0° to 360°
Aperture	F2.0
API	ONVIF (PROFILE S, PROFILE G) <br> ISAPI
Client	HiLookVision Client and HiLookVision Mobile App
Communication Interface	1 RJ45 10M/100M self-adaptive Ethernet port
Consumption	12 VDC <br> 0.4 A, maximum: 5 W PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.13 A <br> maximum: 7 W
Consumption (Without HDD And PoE Off)	≤ 10 W
Day &Night	IR cut filter
Day/Night Switch	Auto <br> Scheduled <br> Day/Night
Dimension (W × D × H)	Camera: Ø70 mm × 191.3 mm (Ø2.7" × 7.5") <br> With package: 216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6")
DNR (Digital Noise Reduction)	3D DNR
Firmware Version	v.5.5.3
Focal Length	2.8 mm
Focus	No
FOV	Horizontal FOV: 114.8°, Vertical FOV: 62°, Diagonal FOV: 135.5°
General Function	Anti-flicker <br> Heartbeat <br> Mirror <br> Password Protection <br> Privacy Mask <br> Watermark <br> IP address filter
H.264 Type	Baseline Profile <br> Main Profile <br> High Profile
H.264+	Main Stream Supports
H.265 Type	Main Profile
H.265+	Main Stream Supports
Image Enhancement	BLC, 3D DNR
Image Setting	Saturation <br> Brightness <br> Contrast <br> Sharpness <br> AGC <br> White balance adjustable by client software or web browser
IR Range	Up to 98 ft (30 m)
Lens Mount	M12
Main Stream	50 Hz: 20 fps (2560 × 1440), 25 fps (2304 × 1296, 1920 × 1080, 1280 × 720) <br> 60 Hz: 20 fps (2560 × 1440), 30 fps (2304 × 1296, 1920 × 1080, 1280 × 720)
Min. Illumination	Color: 0.028 lux @ (ƒ/2.0, AGC on), B/W: 0 lux with IR
Network Storage	NAS (NFS, SMB/CIFS)
Operating Conditions	-30° to 50° C (-22° to 122° F), humidity: 95% or less (non-condensing
Protection Level	IP67
Protocols	TCP/IP <br> ICMP <br> HTTP <br> HTTPS <br> FTP <br> DHCP <br> DNS <br> DDNS <br> RTP <br> RTSP <br> RTCP <br> PPPoE <br> NTP <br> UPnP <br> SMTP <br> SNMP <br> IGMP <br> 802.1x, QoS, IPv6 UDP, Bonjour
Simultaneous Live View	Up to 6 channels
Sub-Stream	50 Hz: 25 fps (640 × 480, 640 × 360, 320 × 240) <br> 60 Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)
User/Host	Up to 32 users; 3 levels: Administrator, Operator, and User
Video Bit Rate	32 Kbps to 8 Mbps
WDR	120 dB
Web Browser	IE8+, Chrome 41.044, Firefox 30.051, Safari 8.011
Working Humidity	95% or less (non-condensing)
Working Temperature	-22° to 140° F (-30° to 60° C)
