Brand |
SUPERMICRO |
|
Model |
CSE-747TQ-R1620B |
|
CPU |
Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages. <br/>6-Phase-switching voltage regulator |
|
Memory Capacity |
16x 240-pin DDR3 DIMM slots <br/>Up to 1TB DDR3 ECC LRDIMM <br/>Up to 512GB DDR3 ECC Registered memory (RDIMM) <br/>Up to 192GB DDR3 ECC Un-Buffered memory (UDIMM) |
|
Memory Type |
1866/1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs |
|
Motherboard |
Super X9DRG-QF |
|
Manufacturer Part Number |

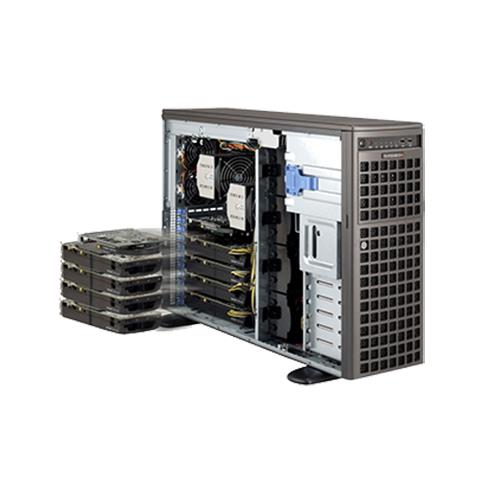

SYS-7047GR-TRF |
|
Backplane |
SAS / SATA Hard Drive Backplane with SES2 |
|
Power Supply |
1620W high-efficiency redundant power supply w/ PMBus |
|
AC Input |
1000W Output @ 100-120V, 12-10A, 50-60Hz <br/>1200W Output @ 120-140V, 12-10A, 50-60Hz <br/>1620W Output @ 180-240V, 10.5-8A, 50-60Hz |
|
AHCI SATA |
2x SATA 3.0 ports (6Gbps) <br/>8x SATA 2.0 ports (3Gbps) |
|
Available Colours |
Black |
|
BIOS Features |
Plug and Play (PnP) <br/>APM 1.2 <br/>PCI 2.2 <br/>ACPI 1.0 / 2.0 <br/>USB Keyboard support <br/>SMBIOS 2.3 <br/>UEFI |
|
BIOS Type |
128Mb SPI Flash EEPROM with AMI® BIOS |
|
Buttons |
Power On/Off button <br/>UID button |
|
Certification |
Platinum Certified |
|
Chipset |
Intel® C602 Chipset |
|
Cores / Cache |
Up to 20MB |
|
DC Output |
1000W: +12V/84A; +5Vsb/4A <br/>1200W: +12V/100A; +5Vsb/4A <br/>1620W: +12V/150A; +5Vsb/4A |
|
Dimensions (D x W x H) |
26.5 x 7 x 18.2" (67.3 x 17.8 x 46.2 cm) |
|
DIMM Sizes |
32GB, 16GB, 8GB, 4GB, 2GB, 1GB |
|
Environmental Spec. |
Operating Temperature: <br/>10°C to 35°C (50°F to 95°F) <br/>Non-operating Temperature: <br/>-40°C to 70°C (-40°F to 158°F) <br/>Operating Relative Humidity: <br/>8% to 90% (non-condensing) <br/>Non-operating Relative Humidity: <br/>5% to 95% (non-condensing) |
|
Error Detection |
Corrects single-bit errors <br/>Detects double-bit errors (using ECC memory) |
|
Fan |
Total of eight fan headers supporting up to 8 fans <br/>8x fans with tachometer status monitoring <br/>Status monitor for speed control <br/>Pulse Width Modulated (PWM) fan connectors |
|
Fans |
4x 92x38mm 4-pin PWM Middle Cooling Fans <br/>2x 80x38mm 4-pin PWM Rear Exhaust Fans |
|
Form Factor |
4U Rackmountable / Tower <br/>Optional Rackmount Kit |
|
GPU Support |
Supports C2075, up to 150W CPU at 35°C <br/>K20C (Kepler), up to 150W CPU at 35°C |
|
Hot-swap |
8x 3.5" Hot-swap SAS/SATA Drive Trays |
|
IPMI |
Support for Intelligent Platform Management Interface v.2.0 <br/>IPMI 2.0 with virtual media over LAN and KVM-over-LAN support <br/>Nuvoton Renesas SH7757 BMC |
|
LAN |
2x RJ45 Gigabit Ethernet LAN ports <br/>1x RJ45 Dedicated IPMI LAN port |
|
LED |
CPU / System Overheat LED <br/>Suspend static indicator LED <br/>UID/Remote LED |
|
LEDs |
Power status LED <br/>Hard drive activity LED <br/>2x Network activity LEDs <br/>System Overheat LED <br/>Power fail LED |
|
Memory Voltage |
1.5 V, 1.35 V |
|
Network Controllers |
Intel® i350 Dual Port Gigabit Ethernet <br/>Virtual Machine Device Queues reduce I/O overhead <br/>Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output <br/>1x Realtek RTL8201N PHY (dedicated IPMI) |
|
Other Features |
Chassis intrusion detection <br/>Chassis intrusion header |
|
PCI-Express |
4 PCI-E 3.0 x16 (double-width) <br/>2 PCI-E 3.0 x8 (1 in x16 slot) <br/>1 PCI-E 2.0 x4 (in x8) |
|
Peripheral Bay(s) |
3x 5.25" drive bays in storage module - rotates 90° for Rackmount <br/>1x 3.5" fixed drive bay |
|
Ports |
2x Front USB 2.0 Ports |
|
RoHS |
RoHS Compliant |
|
Serial Port / Header |
1x Fast UART 16550 port / 1 Header |
|
Super I/O |
Nuvoton W83527 |
|
System Bus |
QPI up to 8 GT/s |
|
Temperature |
Monitoring for CPU and chassis environment <br/>CPU thermal trip support <br/>Thermal Control for 8x fan connectors <br/>Thermal Monitor 2 (TM2) support <br/>PECI |
|
USB |
9x USB 2.0 ports total (4x rear + 4x via header + 1x Type A) |
|
VGA |
1x VGA port |
|
Video |
G200 (Renesas SH7757 BMC with graphic controller) |
