Dynatron

Part #: A31

Item Code: SRDYN00006

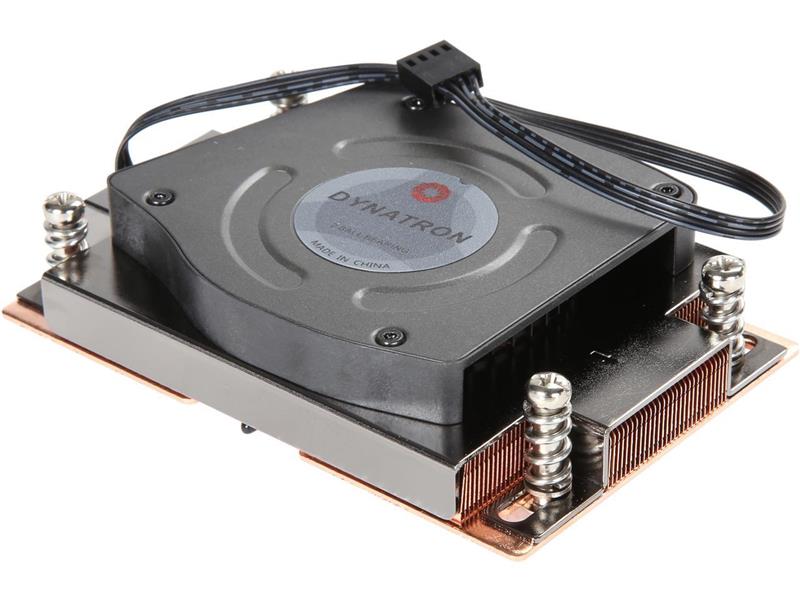

Dynatron A31 EPYC CPU Heatsink Fan for 1U & up Server Workstation - Active SP3 TR4 sTRX4 | Vapor Chamber Base with Copper Stacked Fins, up to 225W TDP (A31)

Dynatron A31 EPYC CPU Heatsink Fan for 1U & up Server Workstation - Active SP3 TR4 sTRX4 | Vapor Chamber Base with Copper Stack
search
  • Dynatron A31 EPYC CPU Heatsink Fan for 1U & up Server Workstation - Active SP3 TR4 sTRX4 | Vapor Chamber Base with Copper Stack
  • Dynatron A31 EPYC CPU Heatsink Fan for 1U & up Server Workstation - Active SP3 TR4 sTRX4 | Vapor Chamber Base with Copper Stack
  • Dynatron A31 EPYC CPU Heatsink Fan for 1U & up Server Workstation - Active SP3 TR4 sTRX4 | Vapor Chamber Base with Copper Stack
  • Dynatron A31 EPYC CPU Heatsink Fan for 1U & up Server Workstation - Active SP3 TR4 sTRX4 | Vapor Chamber Base with Copper Stack
Dynatron

Part #: A31

Item Code: SRDYN00006

Dynatron A31 EPYC CPU Heatsink Fan for 1U & up Server Workstation - Active SP3 TR4 sTRX4 | Vapor Chamber Base with Copper Stacked Fins, up to 225W TDP (A31)

15-day Low Price Guarantee
$99.90
Qty:

Availability

CUSTOM ORDER
AVAILABLE TO ORDER
Returns are only accepted for defective items; all other sales are final.
Delivery times may vary. You will be notified once your order is ready to ship.
Custom order products cannot be canceled once the order is placed.

CPU Support

AMD® Ryzen Threadripper / EPYC Processor

CPU Socket


sTRX4 / TR4 / SP3

Solution

1U Server and Up

Dimensions

120 x 82 x 27.5 mm

Weight

480g

Material

Copper1100 Heatsink with Vapor Chamber Base

Fan Dimension

Ø80 x 13 mm

Speed

At Duty Cycle 20%: 1500 ± 200 RPM
At Duty Cycle 50%: 4000 ± 10% RPM
At Duty Cycle 100%: 8000 ± 10% RPM

Power

At Duty Cycle 20%: 1.44 W
At Duty Cycle 50%: 4.8 W
At Duty Cycle 100%: 19.2 W

Bearing

Ball Type, Double

Rated Voltage

12V

Air Flow

At Duty Cycle 0~20%: 4.30 CFM
At Duty Cycle 50%: 11.6 CFM
At Duty Cycle 100%: 22.80 CFM

Noise Level

At Duty Cycle 20%: 25.6 dBA
At Duty Cycle 50%: 46.9 dBA
At Duty Cycle 100%: 62 dBA

Air Pressure


At Duty Cycle 0~20%: 4.30 CFM
At Duty Cycle 50%: 11.6 CFM
At Duty Cycle 100%: 22.80 CFM

Lead Wire Pin Out

Pin1- (-)
Pin2- (+)
Pin3- (Techometer/Signal output)
Pin4- (PWM)

*All product specifications and product images are subject to change without notice.
