APC

Part #: SRT3000RMXLA-NC

Item Code: SRAPC00022

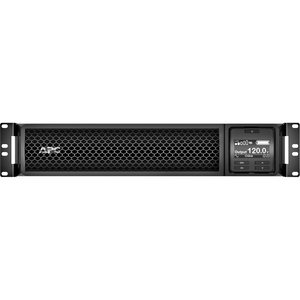

APC Smart-UPS SRT 3000VA 2U Rackmount UPS - with Network Card (SRT3000RMXLA-NC) *Requires NEMA L5-30P Input

APC Smart-UPS SRT 3000VA 2U Rackmount UPS - with Network Card (SRT3000RMXLA-NC) *Requires NEMA L5-30P Input
search
  • APC Smart-UPS SRT 3000VA 2U Rackmount UPS - with Network Card (SRT3000RMXLA-NC) *Requires NEMA L5-30P Input
APC

Part #: SRT3000RMXLA-NC

Item Code: SRAPC00022

APC Smart-UPS SRT 3000VA 2U Rackmount UPS - with Network Card (SRT3000RMXLA-NC) *Requires NEMA L5-30P Input

15-day Low Price Guarantee
$5,999.00
Qty:

Availability

CUSTOM ORDER
AVAILABLE TO ORDER
Returns are only accepted for defective items; all other sales are final.
Delivery times may vary. You will be notified once your order is ready to ship.
Custom order products cannot be canceled once the order is placed.


Output

  • Output power capacity

    1.92 KWatts / 1.92 kVA

  • Max Configurable Power (Watts)

    1.98 KWatts / 2.2 kVA

  • Nominal Output Voltage

    120V

  • Output Voltage Distortion

    Less than 5%

  • Output Frequency (sync to mains)

    50/60Hz +/- 3 Hz

  • Topology

    Line Interactive

  • Waveform type

    Sine wave

  • Output Connections
    (6) NEMA 5-15R (Battery Backup)
    (2) NEMA 5-20R (Battery Backup)
  • Transfer Time

    4ms typical : 8ms maximum

Input

  • Nominal Input Voltage

    120V

  • Input frequency

    50/60 Hz +/- 3 Hz (auto sensing)

  • Input Connections

    NEMA L5-20P

  • Cord Length

    8ft ( 2.44meters )

  • Input voltage range for main operations

    82 - 143V

  • Input voltage adjustable range for mains operation

    75 - 154V

  • Number of Power Cords

    1

Batteries & Runtime

Communications & Management

  • Interface Port(s)

    USB

  • Control panel

    LED status display with On Line : On Battery : Replace Battery and Overload indicators, Multi-function LCD status and control console

  • Audible Alarm

    Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

  • Emergency Power Off (EPO)

    Yes

  • Available SmartSlot™ Interface Quantity

    1

Surge Protection and Filtering

  • Surge energy rating

    530Joules

Physical

  • Maximum Height

    3.39inches ( 86mm , 8.6CM )

  • Maximum Width

    18.9inches ( 480mm , 48.0CM )

  • Maximum Depth

    26.89inches ( 683mm , 68.3CM )

  • Rack Height

    2U

  • Net Weight

    93.08lbs. ( 42.31KG )

  • Shipping weight

    109.41lbs. ( 49.73KG )

  • Shipping Height

    10.0inches ( 254mm , 25.4CM )

  • Shipping Width

    23.62inches ( 600mm , 60.0CM )

  • Shipping Depth

    38.6inches ( 980mm , 98.0CM )

  • Color

    Black

  • Units per Pallet

    8.0

Environmental

  • Operating Temperature

    32 - 104 °F ( 0 - 40 °C )

  • Operating Relative Humidity

    0 - 95 %

  • Operating Elevation

    0-10000ft ( 0-3000meters )

  • Storage Temperature

    -15 - 45 °C

  • Storage Relative Humidity

    0 - 95 %

  • Storage Elevation

    0-50000ft ( 0-15000meters )

  • Audible noise at 1 meter from surface of unit

    55.0dBA

  • Online thermal dissipation

    215.0BTU/hr

Conformance

  • Approvals

    CSA, ENERGY STAR V1.0 (USA), FCC Part 15 Class A, UL 1778

  • Equipment protection policy

    Lifetime : $150000

  • Standard warranty

    3 years repair or replace (excluding battery) and 2 year for battery



Main Features

  • Prevent critical data loss by staying powered during a blackout with up to 2.70 kW load capacity
  • 3 kVA load capacity - work without any interruption during power outages

Marketing Information

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 3kVA on-line 2U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with NEMA L5-30P input, 8x NEMA 5-20R and 1x NEMA L5-30R outlets. The UPS has a preinstalled Network Management Card for UPS network-based monitoring and management. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty.
