Brand |
SUPERMICRO |
|
Model |
X10SRL-F,. |
|
Chipset |
Intel C612 chipset |
|

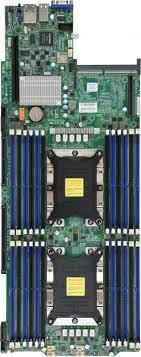

Manufacturer Part Number |
X11DPT-BH |
|
1U Chassis |
SC813MFTQ-R606CB <br/>SC813MFTQ-R400CB <br/>SC813MFTQ-441CB |
|
2U Chassis |
SC213LT-600LPB <br/>SC826TQ-R500LPB SC823TQ-653LPB <br/>SC825TQ-563LPB <br/>SC825TQ-R720LPB |
|
3U Chassis: |
SC833T-653B <br/>SC836TQ-R500B <br/>SC836BE1C-R1K03B |
|
4U / Tower Chassis: |
SC743T-665B <br/>SC842i-500B <br/>SC842TQ-665B <br/>SC842TQ-865B |
|
BIOS Features |
Plug and Play (PnP) <br/>APM 1.2 <br/>DMI 2.3 <br/>PCI 2.3 <br/>ACPI 1.0 / 2.0 / 3.0 / 4.0 <br/>USB Keyboard support <br/>Hardware BIOS Virus protection <br/>SMBIOS 2.7.1 <br/>UEFI 2.3.1 <br/>RTC (Real Time Clock) Wakeup |
|
BIOS Type |
128Mb SPI Flash EEPROM with AMI BIOS |
|
Cores / Cache |
Up to 22 Cores / Up to 55MB Cache |
|
CPU |
Intel® Xeon® processor E5-2600 v4/ v3, E5-1600 v4/ v3 family (up to 145W TDP **) <br/>Single Socket R3 (LGA 2011) |
|
Dimensions |
12" x 9.6", (30.5cm x 24.4cm) |
|
DIMM Sizes |
3DS LRDIMM: 128GB <br/>LRDIMM: 64GB, 32GB <br/>RDIMM: 32GB, 16GB, 8GB, 4GB |
|
Error Detection |
Corrects single-bit errors <br/>Detects double-bit errors (using ECC memory) |
|
Fan |
Total of 6 fan headers supporting up to 6 fans <br/>6 fans with tachometer status monitoring <br/>Status monitor for speed control <br/>Status monitor for on/off control <br/>Low noise fan speed control <br/>Pulse Width Modulated (PWM) fan connectors |
|
Form Factor |
ATX |
|
Graphics |
ASPEED AST2400 BMC |
|
Important Chassis Notes |
To support the new generation Intel® Xeon® processor-based motherboards, Revision M chassis is recommended. Please talk to your sales representative for details. |
|
IPMI |
Support for Intelligent Platform Management Interface v.2.0 <br/>IPMI 2.0 with virtual media over LAN and KVM-over-LAN support <br/>ASPEED AST2400 BMC |
|
LAN |
2x RJ45 Gigabit Ethernet LAN ports <br/>1x RJ45 Dedicated IPMI LAN port |
|
LED |
CPU / System Overheat LED <br/>Suspend static indicator LED <br/>UID/Remote UID |
|
Memory Capacity |
8x 288-pin DDR4 DIMM slots <br/>Up to 1TB ECC 3DS LRDIMM <br/>Up to 512GB ECC LRDIMM <br/>Up to 256GB ECC RDIMM |
|
Memory Type |
2400/ 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (RDIMM / LRDIMM) / 284-pin gold-plated DIMMs |
|
Memory Voltage |
1.2 V |
|
Mid/Mini Tower Chassis: |
SC732i-500B <br/>SC732D4F-903B |
|
Model(s) |
SYS-5018R-MR <br/>SYS-5018R-M |
|
Network Controllers |
Intel® i210 Dual Port Gigabit Ethernet <br/>Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output |
|
Non-Operating Relative Humidity Range |
10% ~ 95% (non-condensing) |
|
Non-Operating Temperature Range |
20°C ~ 60°C (-4°F ~ 140°F) |
|
Note |
** Motherboard supports this maximum TDP. Please verify your system can thermally support. <br/>** E5-1600 series CPU does not support LRDIMM type memory |
|
Operating Relative Humidity Range |
10% ~ 85% (non-condensing) |
|
Operating Temperature Range |
0°C ~ 60°C (32°F ~ 140°F) |
|
Other Features |
Chassis intrusion detection <br/>Chassis intrusion header <br/>Chipkill support <br/>RoHS, Halogen free |
|
PCI-Express |
2x PCI-E 3.0 x8 (in x16) slots <br/>2x PCI-E 3.0 x8 slots <br/>2x PCI-E 3.0 x4 (in x8) slots Auto-switch to 1 x8 and 1 x0 <br/>1x PCI-E 2.0 x4 (in x8) slot |
|
Power Configurations |
ACPI Power Management <br/>Keyboard Wakeup from Soft-Off <br/>CPU Fan auto-off in sleep mode <br/>Power-on mode for AC power recovery |
|
SATA |
10x SATA3 (6Gbps) ports |
|
Serial Port / Header |
1x serial port, 1x header |
|
Software |
Intel® Node Manager <br/>IPMI 2.0 with KVM support <br/>SuperDoctor® 5 <br/>Watch Dog <br/>NMI <br/>SPM <br/>SUM |
|
SuperDOM |
2x SuperDOM (Disk on Module) ports with built-in power |
|
Temperature |
Monitoring for CPU and chassis environment <br/>CPU thermal trip support <br/>I2C temperature sensing logic <br/>Thermal Monitor 2 (TM2) support <br/>PECI |
|
TPM |
1x TPM Header |
|
USB |
4x USB 3.0 ports (2 rear + 1 via header + 1 Type A) <br/>8x USB 2.0 ports (2 rear + 6 via header) |
|
Video |
1 x VGA Port |
|
Voltage |
Monitors for CPU Cores, +3.3V, +5V, +12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages. |
